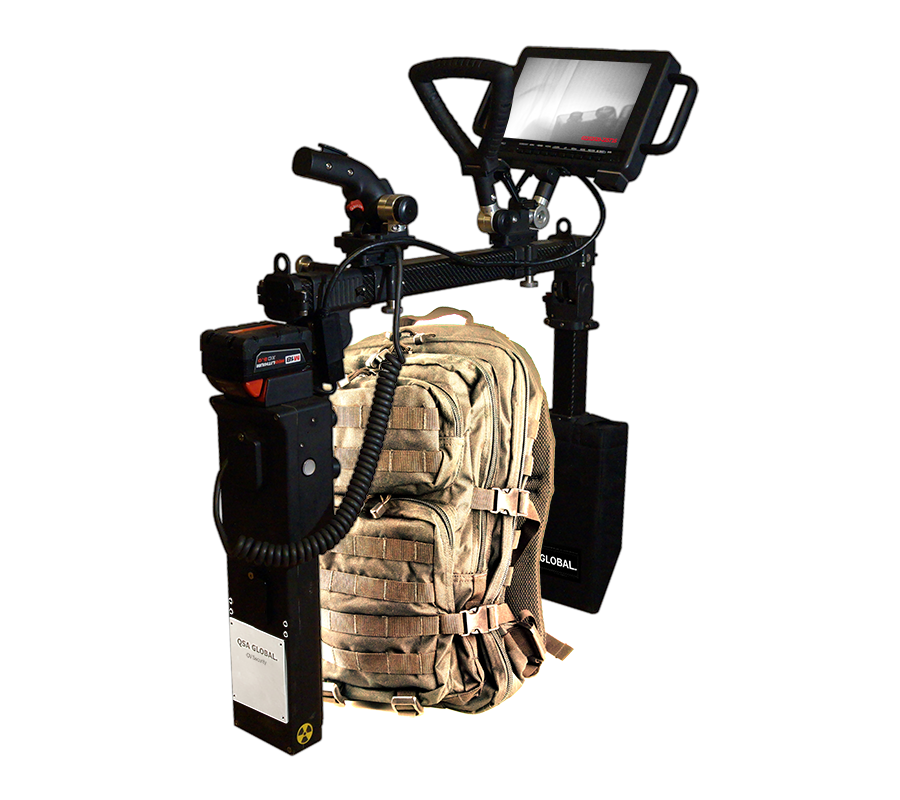

OV Security positioned over a beige bag for x-ray scanning

Meet OV Security.

OV Security™, formerly OpenVision, is a handheld x-ray scanning system featuring a patent-pending combination of a handheld, c-arm mounted 70 kV x-ray source and digital imager that has helped bomb squads and Explosive Ordnance Disposal (EOD) teams quickly inspect and detect high potential hazards for nearly fifteen years.

Minimize time on target. Real-time live video and still image capture provide vital information in determining the next step once a threat is identified, potentially eliminating the need for additional manual approaches.

Handgun

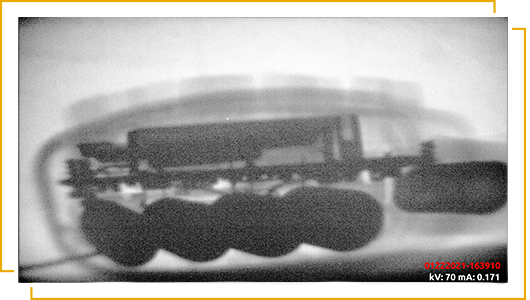

High Potential Hazard

Why OV Security?

Saving Time Saves Lives

Deploy in under two minutes to minimize risk and expedite inspection without evacuation. Real-time live video x-ray enables rapid assessment of unattended items in public areas or discreet VIP protective details.

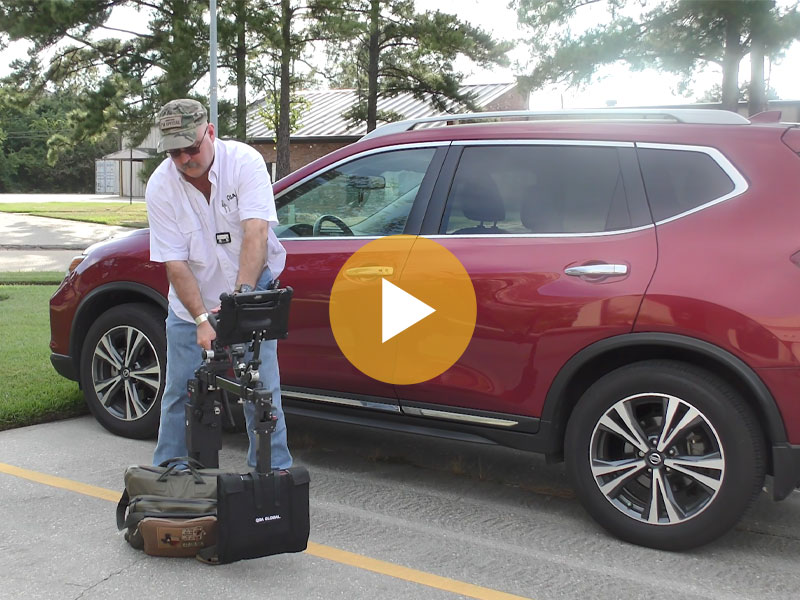

Sweep from the Ground Up

A unique imager explicitly designed for security enables the technician to sweep the entire item of interest from the ground up. There are no dead spaces near the ground or flat surfaces, as is typical of standard digital panels designed for medical and industrial scanners.
Robot Deployable

Reduce manual approaches and time on target for suspicious packages by deploying OV Security on a variety of robot platforms.
Safety

Highly collimated x-rays and specially designed shielding reduces your radiation footprint to a few feet, enabling handheld operation while ensuring public safety.
Expert Support

Application support and training are provided by a retired US Army SFC EOD technician with many years of experience to get you up and running quickly.

Robot Deployable.

When the situation doesn't allow you to manually approach a suspicious package, use OV Security with robot platforms such as ICOR Technology MK3 CALIBER^®.

Using OV Security with robot platforms helps bomb squad and EOD teams inspect suspicious packages, removing the need for a manual approach to determine threat / no threat.

Technician is operating an Icor Technology MK3 CALIBER® to x-ray a case with the OV Security

When to use OV Security.

Event/Crowd Security

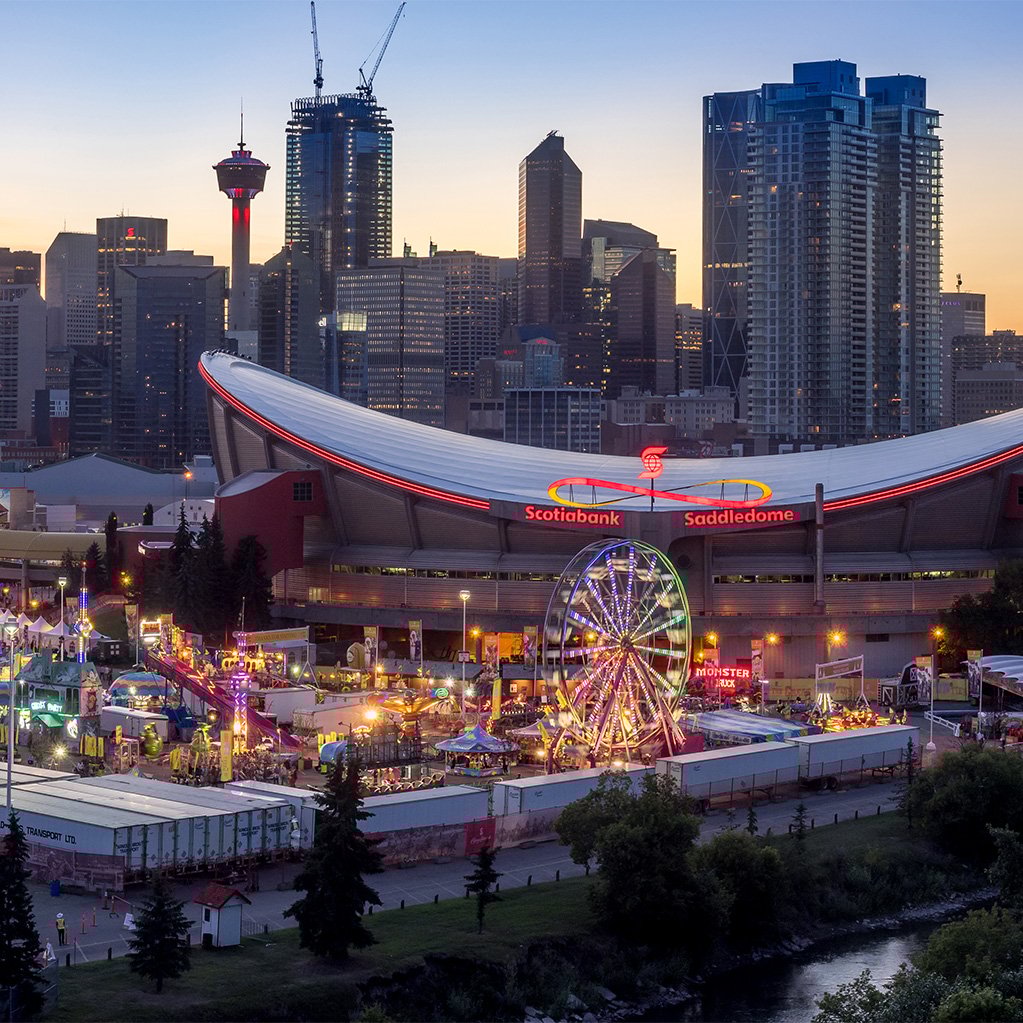

For nearly fifteen years, OV Security has been deployed at airports, major sporting events, and VIP events to perform threat/no threat sweeps. For example, at the Calgary Stampede, OV Security helped determine "no threat" from an unattended bag found in a crowd of over 400,000 people.

Secondary Sweeps

Secondary sweeps are critical for thoroughly clearing areas for potential dangers after an initial threat happens. Bomb technicians utilized OV Security to investigate and clear suspicious packages, bags, and cars after the Aurora Theater Shooting, Orlando Pulse Nightclub Shooting, Austin Serial Bombings, and Boston Marathon Bombings.

What the Experts Say.

"[OV Security] is easy to get a quick x-ray as opposed to having to go with some of the mobile systems that take a few minutes to take an x-ray and run the imaging plates through the system. "

Chris Connolly

Sergeant/ Bomb Technician, Boston Police Department

OV Security Portfolio.

OV Security has been used to safeguard our world for nearly fifteen years. From airports to package handling facilities, EOD teams and bomb squads have discovered high potential hazards, narcotics, money, and numerous other suspicious items quickly by using OV Security.

Perform narcotics sweeps

Bomb technician scanning can with OV Security

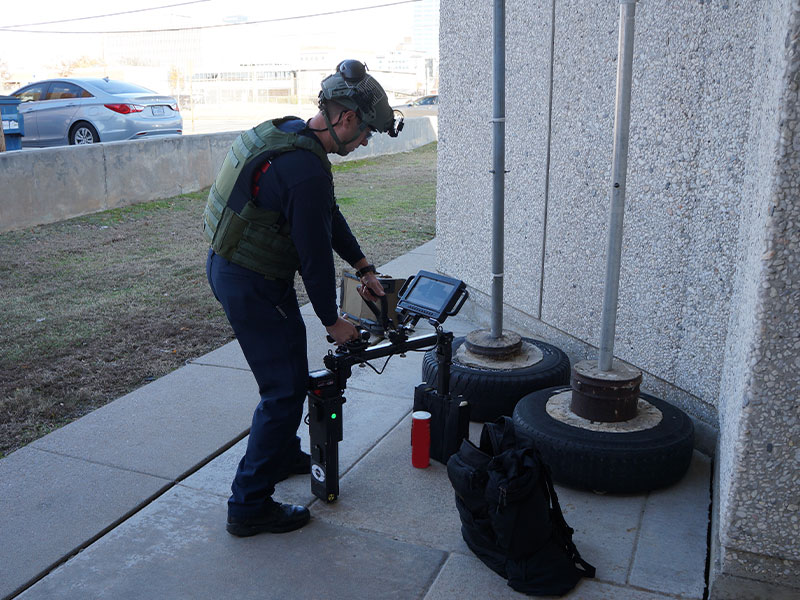

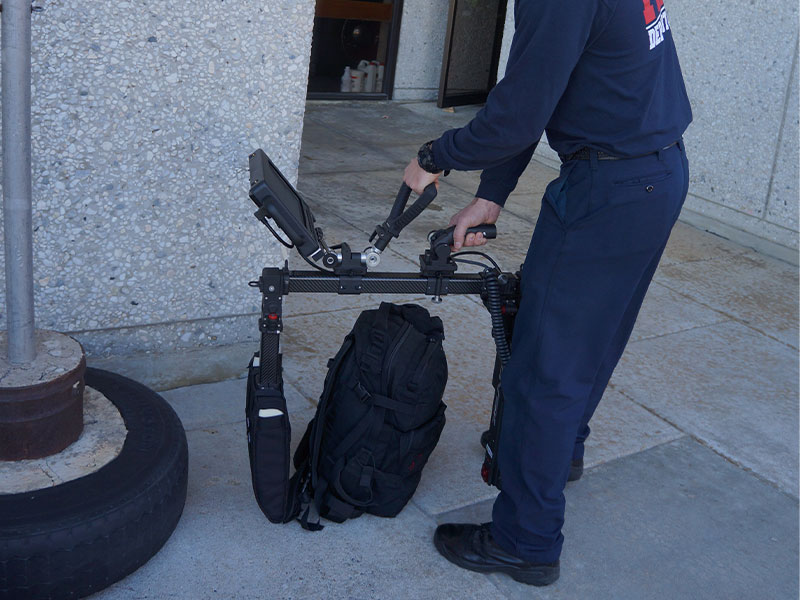

Sweep from the ground up

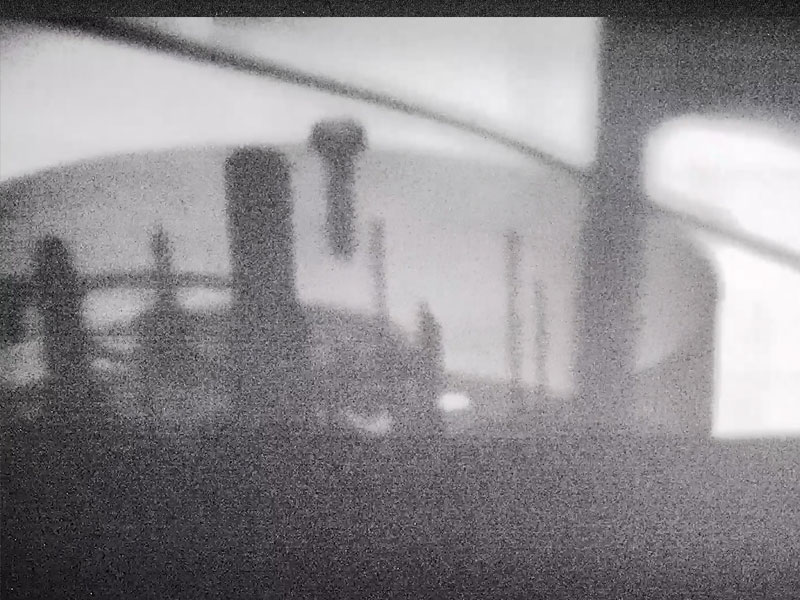

Find hidden potential hazards

Technician operating OV Security with an ICOR Technology CALIBER T5

Watch the MK3 CALIBER® operate OV Security

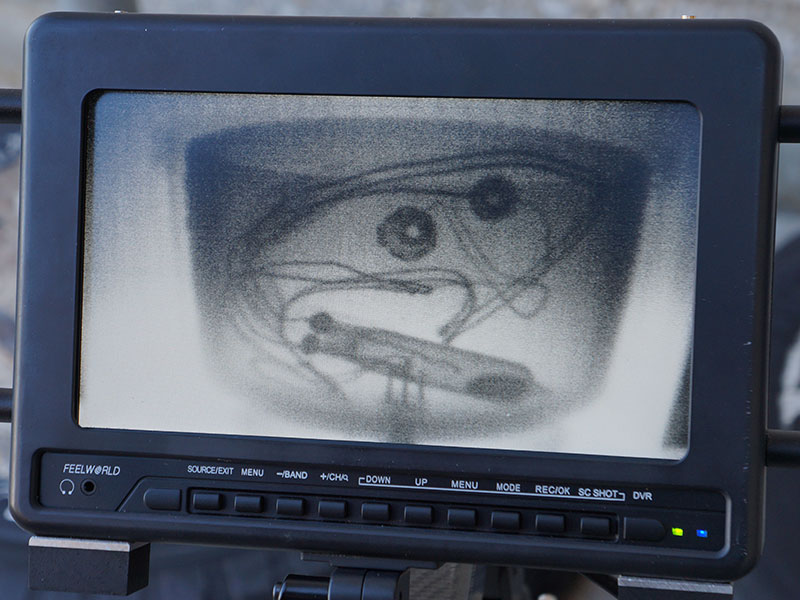

OV Security tablet showing an x-ray scan

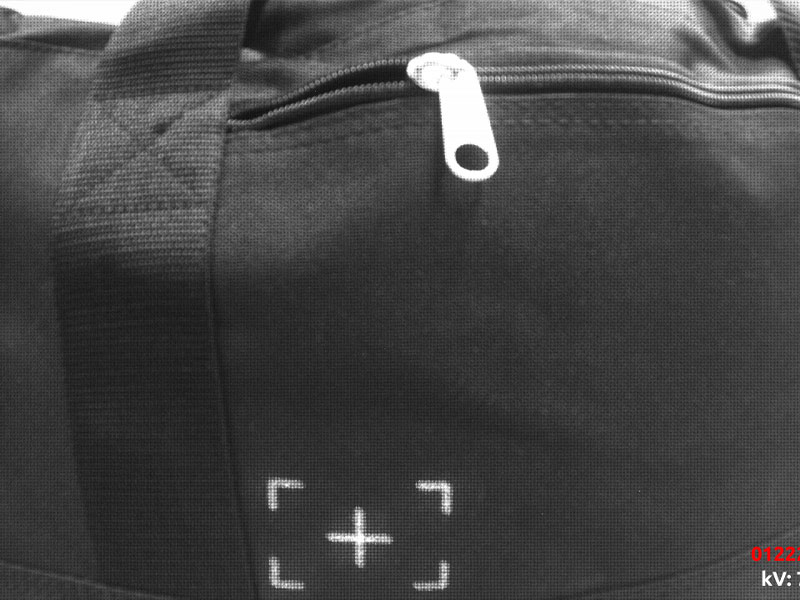

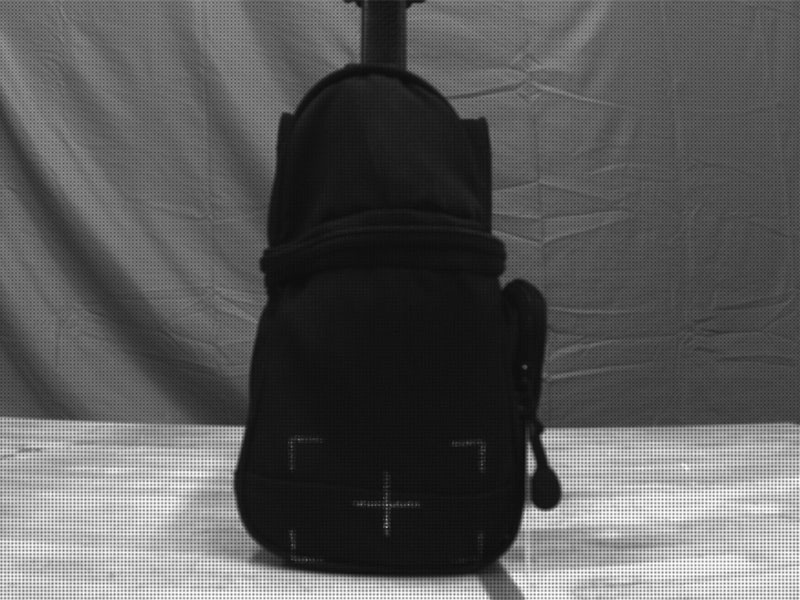

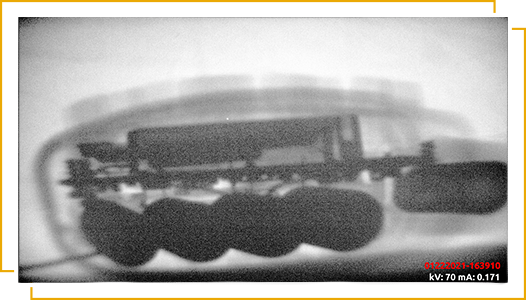

Real-time image & video capture

Identify Threats

Boston Marathon Case Study

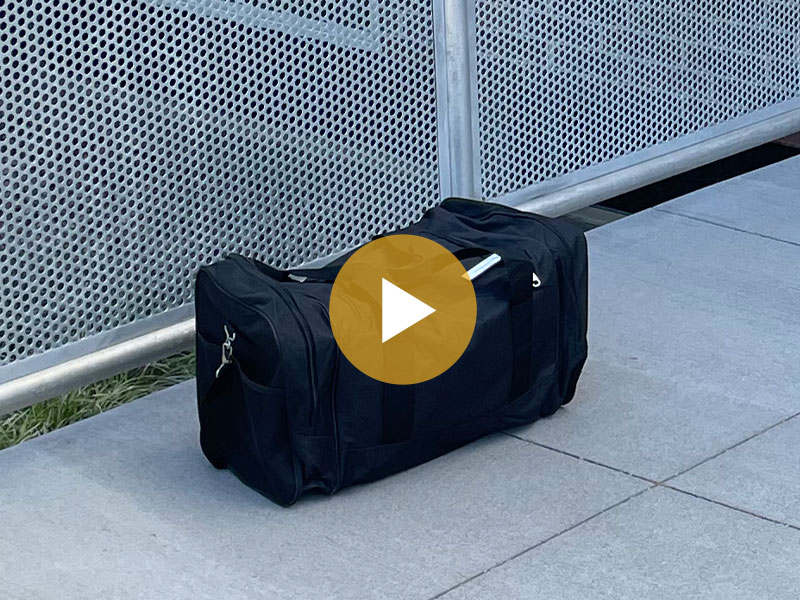

Scan unattended baggage

Technical Specifications.

Weight

C-Arm	15 lb (6.8 kg)
Monitor + Handle	2 lb (0.9 kg)
Shipping Weight	50 lb (23 kg)

Assemble/Disassemble

Assemble	~ 1 min
Disassemble	~ 1 min

Temperature

Operating	-20 to 120 °F (-29 to 49 °C)
Storage	-20 to 140 °F (-29 to 60 °C)

X-Ray Output at 12 in (30.5 cm)

Low	Voltage: 40 kV Current: 0.300 mA Output: 50 R/hr (0.5 Sv/hr)
Medium	Voltage: 55 kV Current: 0.218 mA Output: 80 R/hr (0.8 Sv/hr)
High	Voltage: 70 kV Current: 0.171 mA Output: 95 R/hr (0.95 Sv/hr)

Case Dimensions

32 x 20.5 x 12.5 in (82 x 52 x 32 cm)

Image Resolution

Anomalies down to 250 μm/ 0.01 in

BATTERY LIFE (5 AH BATTERY)

3 Hours Continuous Duty Cycle
8 Hours Standby

Display Options

HDMI Monitor:

7 in (17.5 cm) LED
1920 × 1200

WiFi Tablet:

10 in (24 cm)
1400 × 900
2.4 GHz

PirateEye:

HUD
854 × 480

Recording Capabilities

Internal: 128 GB
WiFi Tablet: 128 GB
Resolution: 1280 × 720
File Transfer: USB

Standards

ANSI/HPS N43.5 (2005)
ISTA 3A Over the Road Vibration Standard
MIL-STD-810, Method 514, Annex C, Cat 4
REACH/ROHS
FDA Accession #: 1680071-000

OV Security Illustration with dimensions

OV Security side view illustration with dimensions

FAQs.

What is OV Security's penetration capability?

OV Security applications range from soft targets such as backpacks and packages to car door panels. At 70 kV, the system can penetrate a 1/8 in (3 mm) steel plate.
What are the overall transport and storage dimensions of OV Security?

OV Security and all accessories are stored and transported in a customized Pelican^TM case with external dimensions: 32 in x 20.5 in x 12.5 in (82 cm x 52 cm x 32 cm).
Can OV Security record videos and still images?

Yes, OV Security provides real-time live video recording and still image capture with 128 GB internal storage capacity. The optional wireless monitor has an additional 128 GB of storage.
How is OV Security safe to operate as a handheld device?

OV Security utilizes a highly collimated x-ray beam to direct x-rays towards the object being screened and away from the operator. Warning lights, a warning screen, and an audible ensure the operator is aware before x-rays are generated and during operation. A trigger interlock ensures the x-rays tube is not accidentally activated.
Does OV Security have a warranty?

Yes, the standard warranty is 12 months. Please see the OV Security Hardware Manual for details.
What kind of after-purchase support is provided?

Our goal is to provide you with an outstanding ownership experience. 24-hour support is available to address your unique needs, including training and support from a retired US Army SFC EOD technician.
Is training for OV Security provided?

Live remote / online training is included standard with OV Security. Personalized onsite training is also available. Please inquire with your specific needs for details and pricing.

Accessories.

OV Security Rugged Tablet

Storage	128 GB Micro SD Card
Connectivity	2.4 GHz WiFi
Screen Size	10 in (25 cm)
Weight	1.15 lb (0.52 kg)
Battery Life	9 hours
Still Image Storage	120,000+
Video Storage	9000+ minutes

OV Security PirateEye

Connectivity	HDMI
Display	WVGA color LCD display (854x480)
Safety Compliance	U.S. MIL SPEC MIL-PRF-31013 ANSI Z87.1+ U.S. Federal OSHA CE EN 166 FTKN
